Construction
| Stamping |
Crno |
| Impeller |
Aluminum/C.I. |
| Bowl |
C.I. |
| Shaft |
EN-8 |
| Bearing Bush |
Gun Metal |
|
|
Application
| Types of Fluids: |
• Water |
| |
• Cooling Emulsion |
| |
• Cooling / Cutting Oil |
| Pumping Temperature: |
• 0-80C |
|
|
Used On
All CNC Machines, Lathes and Machining Centers, Most Suited for Through Tool Cooling, Deep Hole Drilling etc. Also Suitable for Industrial Washing |
Cooling Motor Detail Dimensions |
|
| Type |
No.Of
Stage |
H1 |
H2 |
D |
L1 |
L2 |
E |
PCD |
Power
In KW |
Weight
In KG. |

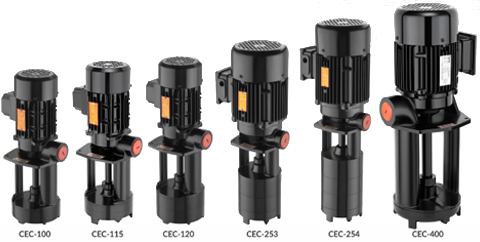

| CEC-100 |
1 |
180 |
245 |
122 |
100 |
95 |
25 |
160 |
0.37 |
12 |
| CEC-115 |
1 |
195 |
245 |
122 |
100 |
95 |
25 |
160 |
0.37 |
12 |
| CEC-120 |
2 |
215 |
245 |
122 |
100 |
95 |
25 |
160 |
0.5 |
14 |
| CEC-253 |
3 |
260 |
315 |
177 |
135 |
95 |
32 |
160 |
1.5 |
30 |
| CEC-254 |
4 |
310 |
340 |
177 |
135 |
95 |
32 |
160 |
1.7 |
36 |
| CEC-400 |
1 |
300 |
320 |
177 |
135 |
125 |
40 |
255 |
1.5 |
36 |
|
|
|
|
 |
|
Construction
| Stamping |
Crno |
| Impeller |
S.S. 304 |
| Bowl |
S.S. 304 |
| Shaft |
EN-8 |
| Bearing Bush |
Gun Metal |
|
|
Application
| Types of Fluids: |
• Water |
| |
• Cooling Emulsion |
| |
• Cooling / Cutting Oil |
| Pumping Temperature: |
• 0-80C |
|
|
Used On
All CNC Machines, Lathes and Machining Centers, Most Suited for Through Tool Cooling, Deep Hole Drilling etc. Also Suitable for Industrial Washing |
Cooling Motor Detail Dimensions |
|
| Type |
No.Of
Stage |
H1 |
H2 |
D |
L1 |
L2 |
E |
PCD |
Power
In KW |
Weight
In KG. |

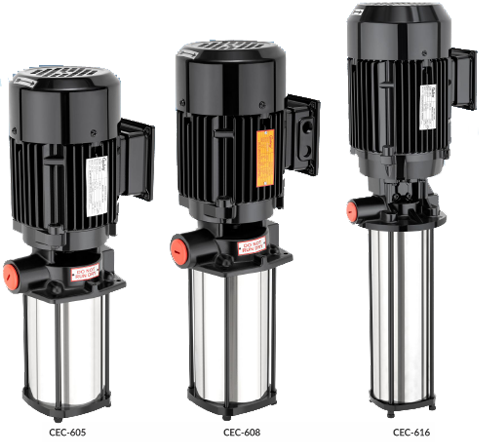

| CEC-605 |
5 |
200 |
315 |
160 |
125 |
95 |
25 |
160 |
0.75 |
21 |
| CEC-608 |
8 |
240 |
315 |
160 |
125 |
95 |
25 |
160 |
1.1 |
24 |
| CEC-616 |
16 |
385 |
415 |
197 |
140 |
105 |
25 |
160 |
2.6 |
41 |
|
|
|
|
|
