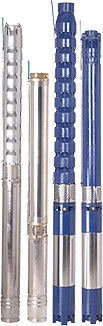

V6
Pump Sets (150mm)
Three Phase,
Mixed Flow, S.S. Motor Body |
 |
| Application |
�
For water supply.
� For irrigation.
� For civil and industrial applications.
� For fire fighting application. |
| Performance
Range |
�
Head range up to 490 meters.
� Flow range up to 84 m�/h. |
| Operating
Conditions |
� Water temperature up to 45�C.
� Max. Sand quantity into the water : 50 g/m�.
� Max. Starts per hour : 20 at regular intervals.
� Direction of rotation : Clockwise as seen from the pump
coupling side. |
| Basic
Constructions |
� Submersible motor & pumps for deep wells of 6"
(DN 150mm)
� Sized for connection to the motor according to NEMA
standards.
� Delivery casing with built-in non-return valve.
� Impellers :
Radial flow impellers.
K30A,K40A,K50A,K60A,K70A,K80A,K100A,
N30A,N40A,N50A,N60A,N70A,N80A,N100A.
Mixed flow impellers.
M10A,M12A,M16A,M20A,B25A,B30A
� Connection: Screwed pipe connection |
|
|
Technical
Specifications |
| Model |
HP |
Stage |
Outlet
(inch) |
Head
Range |
| Min Head (mts) |
Max. Discharge (LPM) |
Max Head (mts) |
Min. Discharge (LPM) |
| CQ-32 |
3 |
2 |
2.5 |
12 |
550 |
18 |
300 |
| |
| CQ-43 |
4 |
3 |
2.5 |
19 |
550 |
28 |
300 |
| |
| CQ-53 |
5 |
3 |
2.5 |
15 |
700 |
27 |
400 |
| CQ-54 |
5 |
4 |
2.5 |
20 |
550 |
36 |
300 |
| |
| CQ-63 |
6.5 |
3 |
2.5 |
15 |
875 |
27 |
550 |
| CQ-64 |
6.5 |
4 |
2.5 |
20 |
700 |
36 |
400 |
| CQ-65 |
6.5 |
5 |
2.5 |
25 |
550 |
45 |
300 |
| |
| CQ-73 |
7.5 |
3 |
2.5 |
15 |
100 |
26 |
600 |
| CQ-74 |
7.5 |
4 |
2.5 |
20 |
875 |
36 |
550 |
| CQ-75 |
7.5 |
5 |
2.5 |
25 |
700 |
45 |
400 |
| CQ-76 |
7.5 |
6 |
2.5 |
30 |
550 |
54 |
300 |
| |
| CQ-104 |
10 |
4 |
2.5 |
20 |
1000 |
34 |
600 |
| CQ-105 |
10 |
5 |
2.5 |
25 |
875 |
44 |
550 |
| CQ-106 |
10 |
6 |
2.5 |
30 |
760 |
54 |
450 |
| CQ-107 |
10 |
7 |
2.5 |
35 |
700 |
63 |
400 |
| CQ-108 |
10 |
8 |
2.5 |
40 |
550 |
72 |
300 |
| |
| CQ-125 |
12.5 |
5 |
2.5 |
25 |
1000 |
44 |
600 |
| CQ-126 |
12.5 |
6 |
2.5 |
30 |
875 |
55 |
550 |
| CQ-127 |
12.5 |
7 |
2.5 |
35 |
760 |
63 |
450 |
| CQ-128 |
12.5 |
8 |
2.5 |
40 |
700 |
72 |
400 |
| CQ-121 |
12.5 |
10 |
2.5 |
50 |
550 |
92 |
300 |
| |
| CQ-156 |
15 |
6 |
2.5 |
30 |
1000 |
52 |
600 |
| CQ-157 |
15 |
7 |
2.5 |
35 |
875 |
63 |
550 |
| CQ-158 |
15 |
8 |
2.5 |
40 |
760 |
72 |
450 |
| CQ-151 |
15 |
10 |
2.5 |
50 |
700 |
92 |
400 |
| CQ-151 |
15 |
12 |
2.5 |
30 |
550 |
110 |
300 |
|
| |
|
|
|
|
